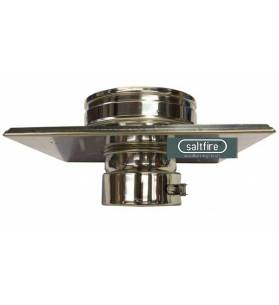

Stack Support 6" Twinwall

currently out of stock.

Description

This part is for use when the existing brick chimney has has been removed above roof level and down into the loft. The rigid twinwall will start from this point and the flexible stainless steel liner will hang from the underside of this plate.



Inner Diameter 150mm, external diameter 210mm.



Our superior stainless steel insulated twinwall flue system for use with solid fuel appliances. DWX has the strongest interlocking joint system on the market today, making it popular with top installers who need to rely on a quality system every time.



Select your required parts and add to your cart, or alternatively use our FREE TWINWALL QUOTATION SERVICE and we will select all of the required parts to suit your system.



Note: a locking band is required at each joint in the twinwall system.



Main Features



• Simple, easy push-fit system

• HETAS Approved

• High mechanical resistance to vertical and horizontal forces

• 60mm clearance to combustibles

• No thermal bridge, insulation continuity throughout the system

• Thermal expansion absorbed in each element

• High working temeprature: 600°C under continuous operation



Applications



• Solid fuel appliances, wood and multifuel stoves

• Biomass boilers

• Domestic heating and hot water systems

• Hot air generators

• Bakery ovens

• Ventilation and smoke extraction

• Industrial / commercial heating



Materials



Inner wall: 316L Stainless Steel

Outer wall: 304 Stainless Steel

Insulation: 30mm Rockwool
